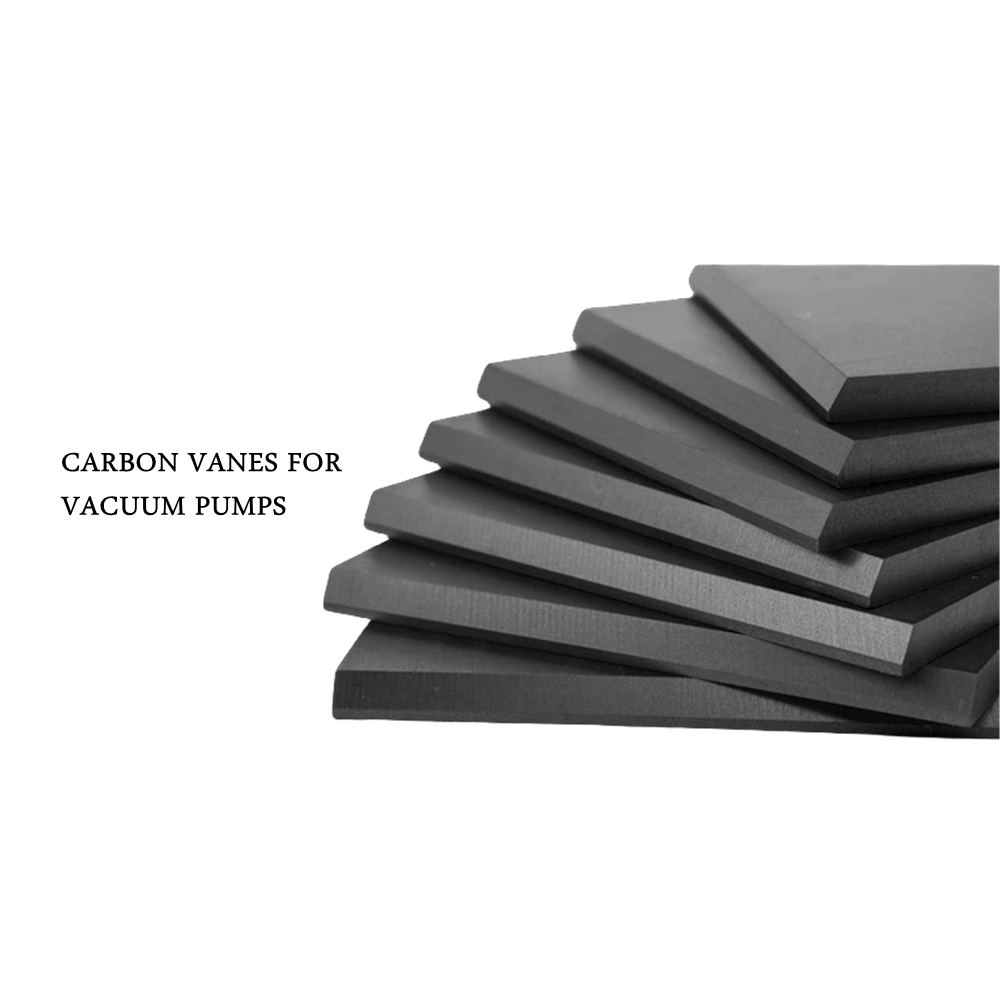

Rotary Vanes

For extending service intervals of dry-running vacuum pumps, our rotary vanes made of Germany material or China material .Both all are self-lubricating carbon-based vane material that minimizes wear of the sliding flanks (scour) as well as vertical wear and does not swell when exposed to humidity.

Advantages:

Low wear, therefore up to three times longer service life

High dimensional stability, even in high humidity

Technical parameter

1. Description :

Grade	Density g/cm3	Shore Hardness	Apparent porosity %	compression strength Mpa	Flexural Strength Mpa
M106H	1.65	60	2	125	51
M258	1.9	50	2	88	42
EK60	1.74	105	1		75
V1626	1.85	90	10	150	58
